Modular High-Power UVA Blacklight

50–1600 W, 60°/120° beam, 365/395 nm. The workhorse for stadiums and large venues.

Modular high-power UV-A floodlight with stacked LED modules and a single module beside it

Add or remove modules to hit the wattage the venue needs. One failed module does not take down the rest of the array, and a replacement is a module swap.
High-transmittance tempered glass and a uniform face, so the wash does not break into dark bands.
Adjustable bracket with a scale and locking knob for wall, pole or ground mounting.
Every batch ships with a third-party radiometric test report. Published radiant flux on the flagship series runs from 69.8 W to 727.5 W.
CE and RoHS. A 5-year warranty is available.

496TG 296TG 35TG 35TG II 5763TG 5747TG family XYTG PGTG

496TG

The high-mast series. Six electrical sizes from 200 W to 1600 W, stacked modules on a locking bracket. This is the range behind the 69.8–727.5 W radiant-flux figures.

365 nm / 395 nm60° / 120°110/220 V AC, 50/60 HzExternal driverPF ≥ 0.96Die-cast aluminum−40 °C to +40 °C

496TG modular UV floodlight, four modules on a tilt bracket, plus a single module

Item	Power	Weight	Radiant flux (W)
GY496TG200(1)	200 W	7 kg	69.8 / 90.9
GY496TG400(2)	400 W	14 kg	139.7 / 181.8
GY496TG600(3)	600 W	23 kg	209.6 / 272.8
GY496TG800(4)	800 W	30 kg	279.5 / 363.7
GY496TG1200(6)	1200 W	45 kg	419.3 / 545.6
GY496TG1600(8)	1600 W	60 kg	559.1 / 727.5

Radiant flux is published as a pair for the 365 nm and 395 nm options, in datasheet order. It is measured UV output, not electrical watts.

IP66

296TG

Oval-module family from 50 W to 300 W. Aluminum and glass, external driver, the usual first step when a field or hall does not need the 496TG mass.

Open the 296TG model page

365 nm / 395 nm60° / 120°110/220 V AC, 50/60 HzExternal driverPF ≥ 0.96Aluminum and glass−40 °C to +40 °C

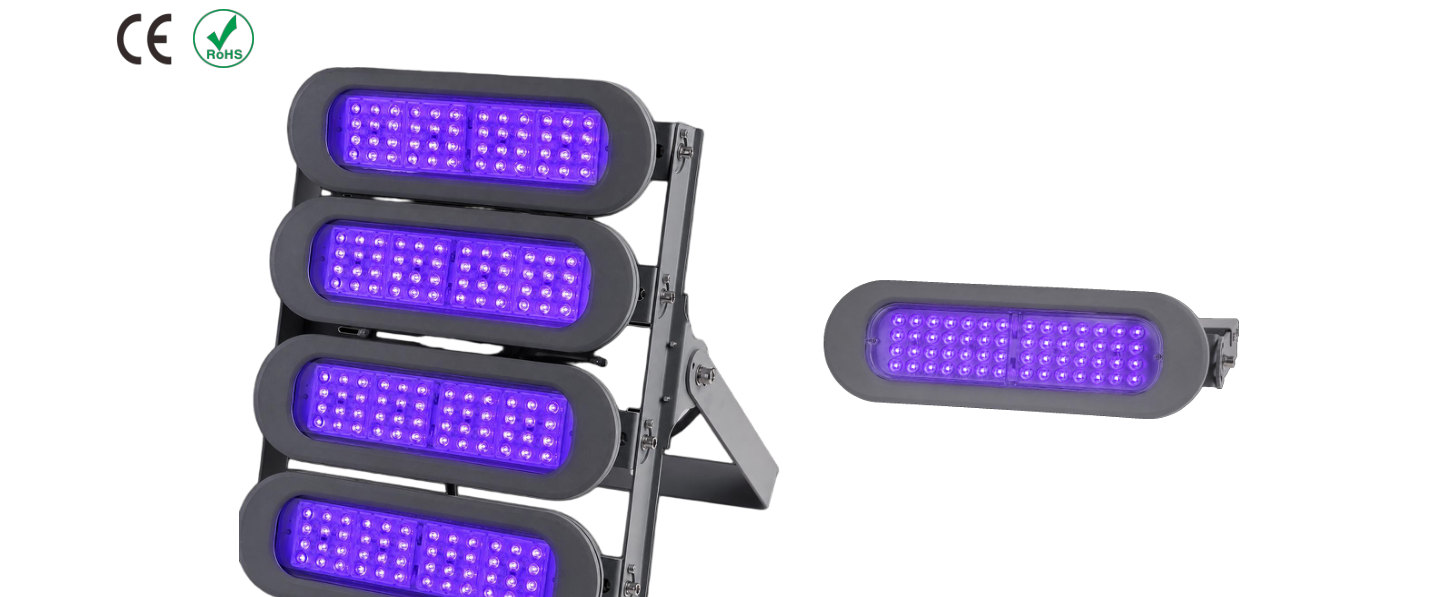

296TG modular UV blacklight with oval LED modules on an adjustable bracket

Item	Power	Weight	Radiant flux (W)
GY296TG50(1)	50 W	2.8 kg	17.1 / 22.8
GY296TG100(2)	100 W	3.8 kg	34.3 / 45.6
GY296TG150(3)	150 W	4.8 kg	51.4 / 68.4
GY296TG200(4)	200 W	5.8 kg	68.6 / 91.3
GY296TG250(5)	250 W	6.8 kg	85.6 / 114
GY296TG300(6)	300 W	7.8 kg	102.3 / 137.1

Radiant flux is published as a pair for the 365 nm and 395 nm options, in datasheet order. It is measured UV output, not electrical watts.

Oval glass modules, external driver, 2.8–7.8 kg.

IP66

35TG

Slim stacked modules, 50 W to 600 W, for truss, wall and pole positions where the 496TG depth is too much.

365 nm / 395 nm60° / 120°110/220 V AC, 50/60 HzExternal driverPF ≥ 0.95Aluminum−40 °C to +40 °C

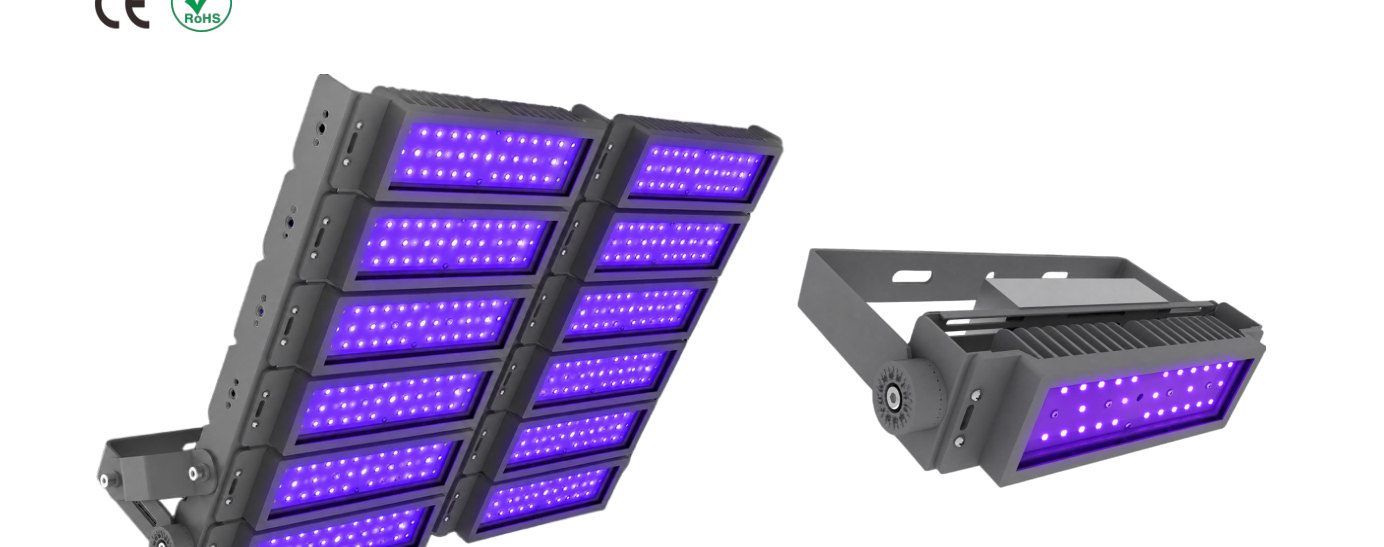

35TG slim modular UV floodlight shown as a multi-module array and a single head

Item	Power	Weight	Radiant flux (W)
GY35TG50(1)	50 W	1 kg	17.1 / 22.8
GY35TG100(2)	100 W	1.5 kg	34.3 / 45.6
GY35TG150(3)	150 W	2.3 kg	51.4 / 68.4
GY35TG200(4)	200 W	2.8 kg	68.6 / 91.3
GY35TG250(5)	250 W	3.4 kg	85.6 / 114
GY35TG300(6)	300 W	3.9 kg	102.3 / 137.1
GY35TG350(8)	350 W	6.2 kg	119.5 / 159.6
GY35TG400(8)	400 W	6.2 kg	136.6 / 182.4
GY35TG500(10)	500 W	7.6 kg	171.2 / 229
GY35TG600(12)	600 W	9 kg	206.4 / 273.8

Radiant flux is published as a pair for the 365 nm and 395 nm options, in datasheet order. It is measured UV output, not electrical watts.

IP66

35TG II

The second-generation 35TG body with a tempered-glass cover. One family covers 100 W through 600 W, radiant flux 33.8–201.7 W.

365 nm / 395 nm60° / 120°110/220 V AC, 50/60 HzExternal driverPF ≥ 0.96Aluminum with tempered glass cover−40 °C to +40 °C

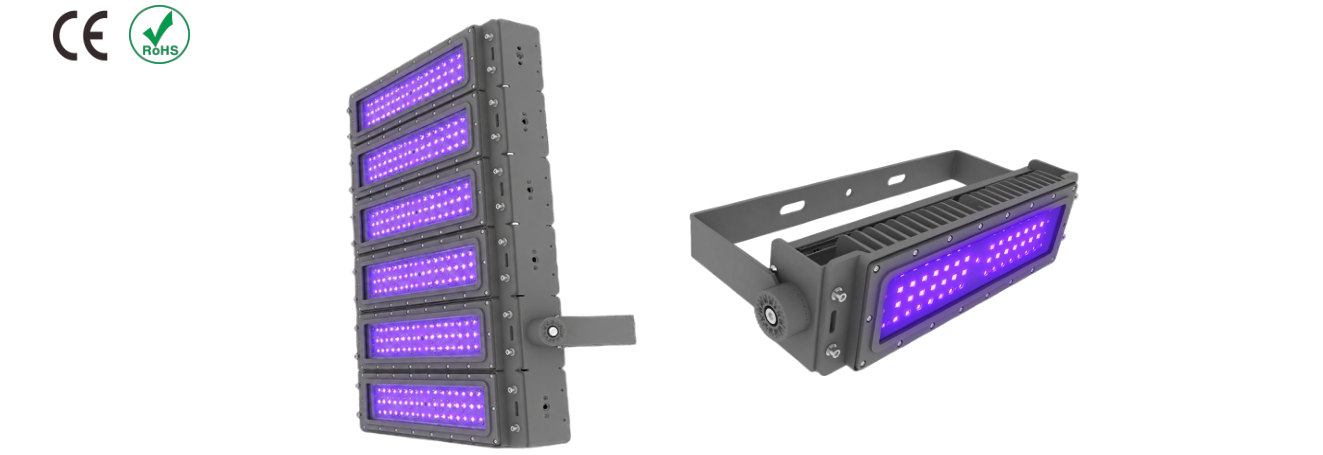

35TG II modular UV fixture with a tempered glass cover and side bracket

Item	Power	Radiant flux (W)
GY35TGII	100 / 200 / 300 / 400 / 500 / 600 W	33.8–201.7

Radiant flux is published as a pair for the 365 nm and 395 nm options, in datasheet order. It is measured UV output, not electrical watts.

Drawings cover one to six modules. Ask for the wattage-by-module sheet with the sample.

IP66

5763TG

A single-housing flood from 15 W to 600 W with the driver inside the body. Useful when an external driver box is not wanted on the pole.

365 nm / 395 nm60° / 120°110/220 V AC, 50/60 HzInternal driverPF ≥ 0.97Aluminum and tempered glass−40 °C to +40 °C

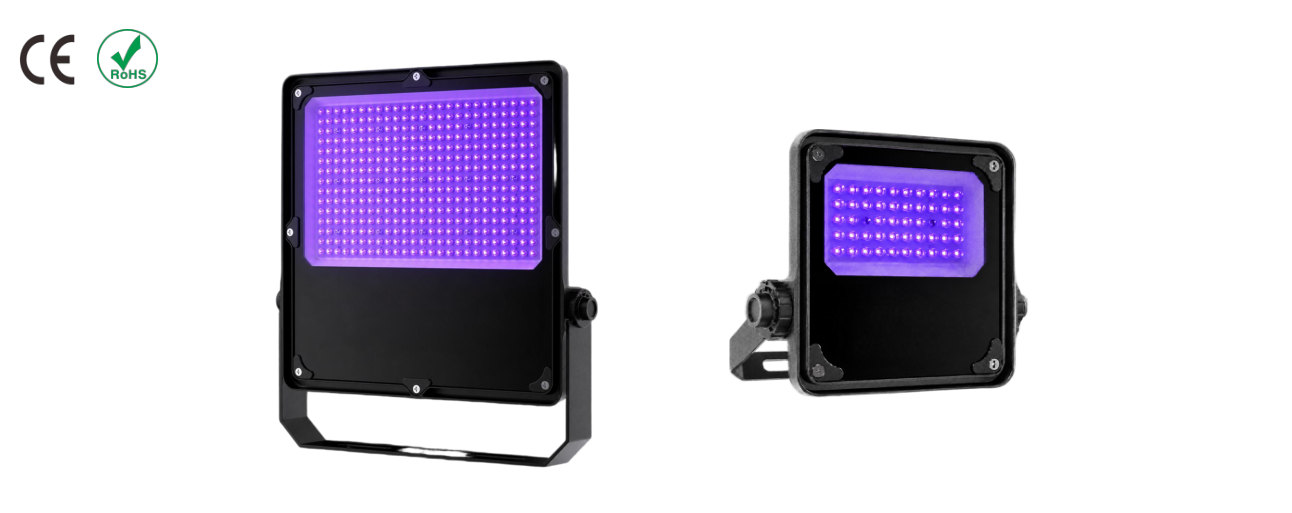

5763TG black UV floodlight, large and compact housings with yoke brackets

Item	Power	Weight	Radiant flux (W)
GY5763TG	15–600 W	1.2–14.7 kg	5.1–205.2

Radiant flux is published as a pair for the 365 nm and 395 nm options, in datasheet order. It is measured UV output, not electrical watts.

Series drawing references a compact head near 198 × 195 × 42 mm and a large body near 630 × 630 × 76 mm.

IP65

5747TG family

Three rectangular housings — 3937, 5137 and 5747 — from 300 W to 1200 W. IP65, internal driver, fixed outline dimensions.

365 nm / 395 nm60° / 120°110/220 V AC, 50/60 HzInternal driverPF ≥ 0.9Aluminum and tempered glass−40 °C to +40 °C

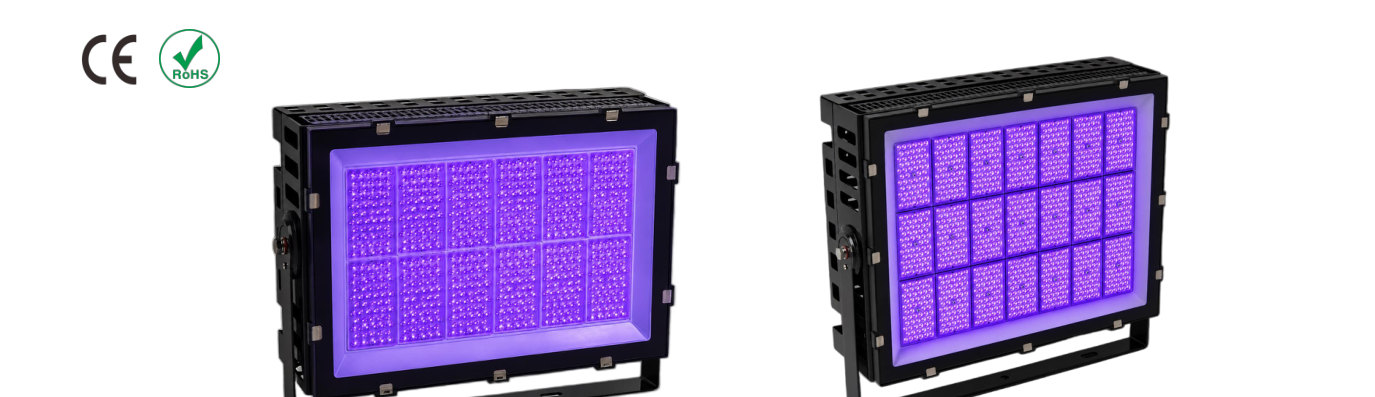

5747TG family rectangular UV floodlights with tempered glass faces

Item	Power	Dimension	Radiant flux (W)
GY3937TG	300 / 400 W	393.8 × 372 × 163 mm	104.7 / 136.3
GY5137TG	500 / 600 W	514.2 × 372 × 163 mm	174.5 / 227.2
GY5747TG	1000 / 1200 W	576.2 × 473 × 163 mm	349 / 454.4

Radiant flux is published as a pair for the 365 nm and 395 nm options, in datasheet order. It is measured UV output, not electrical watts.

IP65

XYTG

A yoke-mounted flood with a deep finned back, 50 W to 600 W. Internal driver, IP65, for wall and low-pole washes.

365 nm / 395 nm60° / 120°110/220 V AC, 50/60 HzInternal driverPF ≥ 0.9Aluminum and tempered glass−40 °C to +40 °C

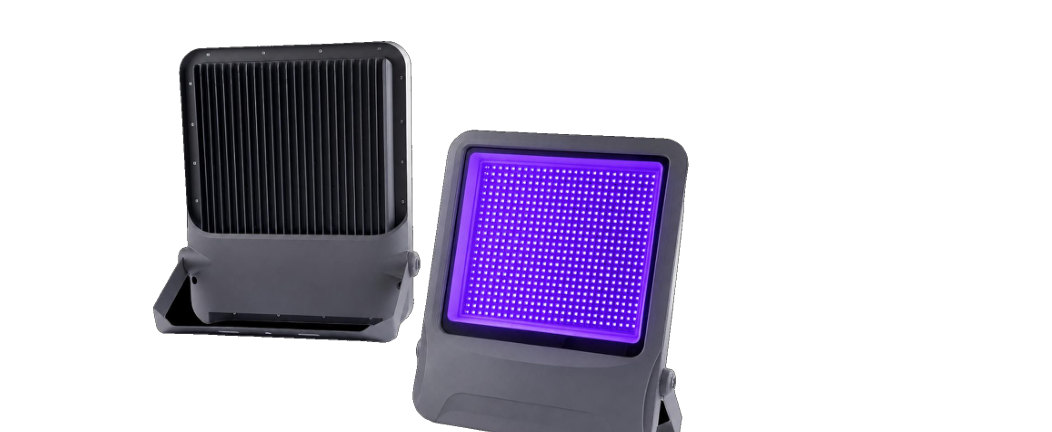

XYTG UV floodlight, finned rear housing and LED face on a yoke

Item	Power	Dimension	Radiant flux (W)
GY-XYTG-50	50 W	256 × 195 × 50 mm	17.1 / 22.8
GY-XYTG-100	100 W	315 × 240 × 60 mm	34.3 / 45.6
GY-XYTG-150	150 W	380 × 290 × 60 mm	51.4 / 68.4
GY-XYTG-200	200 W	420 × 350 × 60 mm	68.6 / 91.3
GY-XYTG-300	300 / 400 W	492 × 410 × 60 mm	102.3 / 137.1
GY-XYTG-500	500 / 600 W	570 × 475 × 60 mm	171.2 / 229

Radiant flux is published as a pair for the 365 nm and 395 nm options, in datasheet order. It is measured UV output, not electrical watts.

IP65

PGTG

A flat flood, 50 W to 400 W, with the driver in the housing. The 50 W face is marked IP65. A practical body for bars, courtside and facade washes.

365 nm / 395 nm60° / 120°110/220 V AC, 50/60 HzInternal driverPF ≥ 0.9Aluminum and tempered glass−40 °C to +40 °C

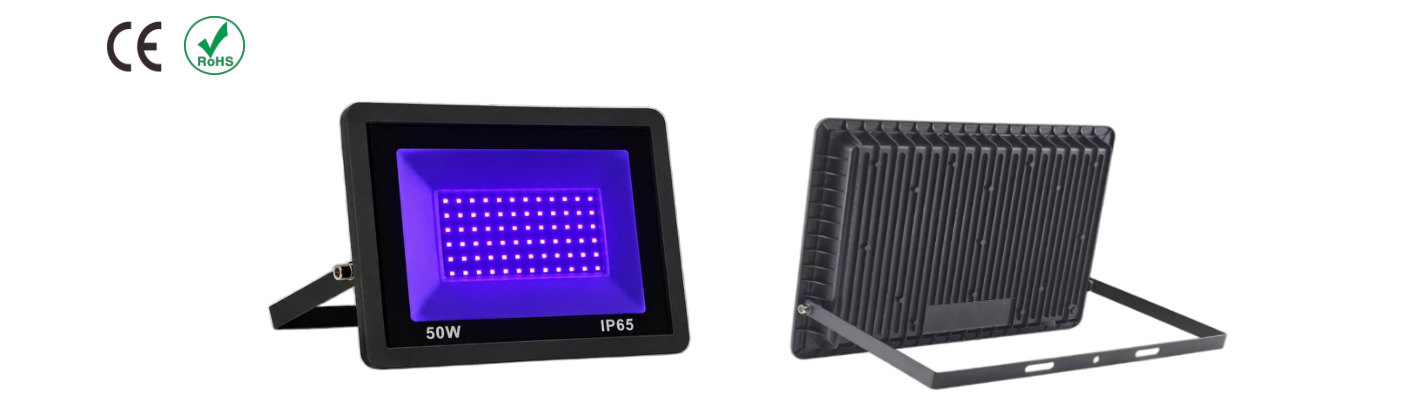

PGTG 50 W IP65 UV floodlight, front face and finned rear with stirrup

Item	Power	Dimension	Radiant flux (W)
GY-PGTG-50	50 W	270 × 210 × 30 mm	10.2 / 13.7
GY-PGTG-100	100 W	320 × 230 × 35 mm	20.4 / 27.4
GY-PGTG-150	150 W	380 × 280 × 35 mm	30.6 / 41.1
GY-PGTG-200	200 W	420 × 305 × 40 mm	40.8 / 54.8
GY-PGTG-300	300 W	460 × 340 × 40 mm	61.2 / 82.2
GY-PGTG-400	400 W	558 × 340 × 40 mm	81.6 / 109.6

Radiant flux is published as a pair for the 365 nm and 395 nm options, in datasheet order. It is measured UV output, not electrical watts.

Questions on this family

What is the difference between electrical watts and the radiant-flux numbers?

Electrical watts are what the fixture draws. Radiant flux, in watts of UV, is what the LEDs actually emit. On the 496TG a 1600 W fixture is published at 559.1 / 727.5 W radiant flux. Layouts should use the radiant figure.

Does a failed module shut the fixture off?

No. Modules are independent. The rest of the array stays on, and the failed module can be swapped without replacing the whole flood.

Which series fits a stadium mast?

496TG, from 200 W to 1600 W, is the high-mast family. 296TG and 35TG cover the same wavelengths at lower mass when the throw is shorter. The free layout uses your mast height and field size to choose.

Are the fixtures outdoor-rated?

496TG, 296TG, 35TG, 35TG II and 5763TG are IP66. The 5747 family, XYTG and PGTG are IP65. Working temperature on the datasheet is −40 °C to +40 °C.

Used for

Stadium & Arena UV ShowsFull-field UV coverage for night games, halftime shows and fluorescent performances. Fixtures scale from 50 W to 1600 W.Stage, Festival & PartyModular arrays that wash a large stage evenly. Quick-mount brackets for truss, wall and ground.Industrial UV Curing & InspectionPortable and fixed UV-A sources for ink and coating cure and fluorescent defect detection, with verified radiant-flux data.
